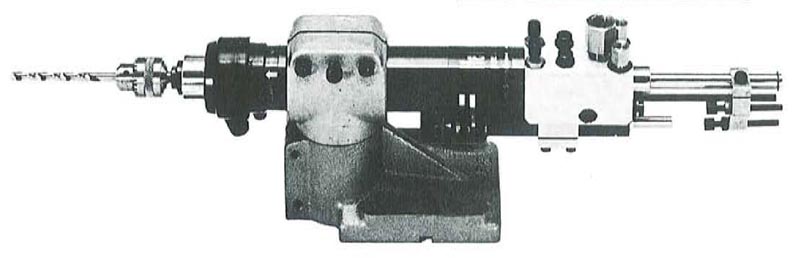

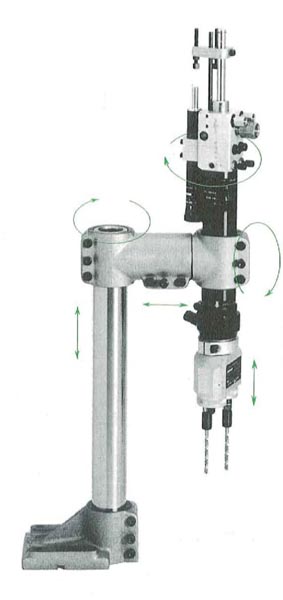

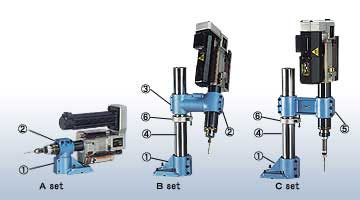

By selecting from these clamps and columns any desired clamping unit for your special requirements can easily be assembled. Units constructed with these are rigid and rugged. The Selfeeder can be held at any angle and maintain accuracy.
Applicable Selfeeder Types
Applicable Selfeeder Types
- SFC Selfeeder Unit
- Base Clamp
- Swivel Clamp
- Column Clamp
- Level Clamp
- Column
Unit of Measure

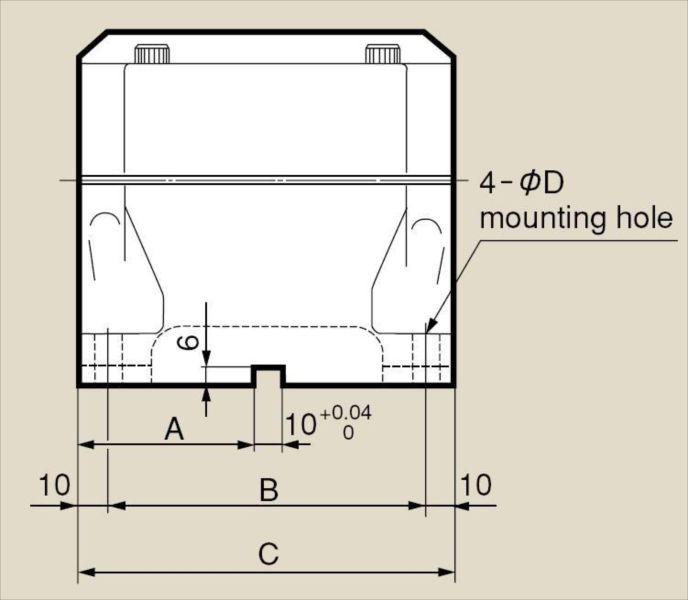

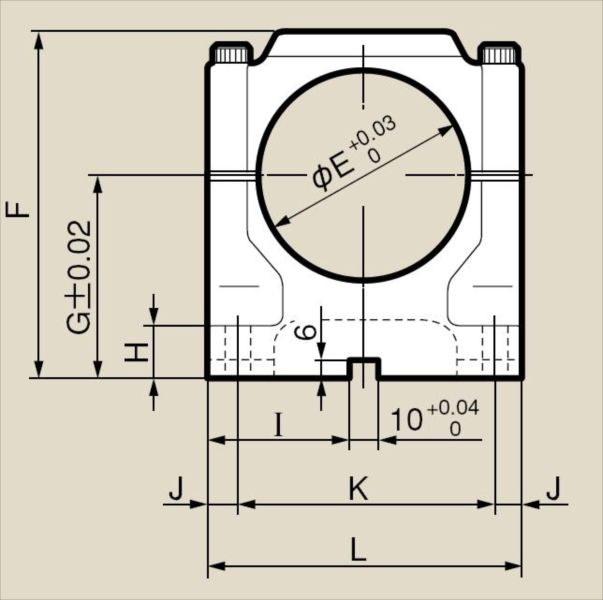

Specifications
A (inches) |
N/A 1.77 |
B (inches) |
N/A 0.24 |
C (inches) |
N/A 0.3937 - 0.3953 |
D (inches) |
N/A 3.15 |
E (inches) |
N/A 0.40 |
F (inches) |
N/A 3.95 |
G (inches) |
N/A 0.33 |
H (inches) |
N/A 4.65 |
I (inches) |
N/A 2.7551 - 2.7567 |
J (inches) |
N/A 0.59 |
K (inches) |
N/A 2.6772 - 2.6783 |
L (inches) |
N/A 3.15 |
M (inches) |
N/A 0.40 |
N (inches) |
N/A 3.95 |
Applicable Unit |
N/A SFC |
